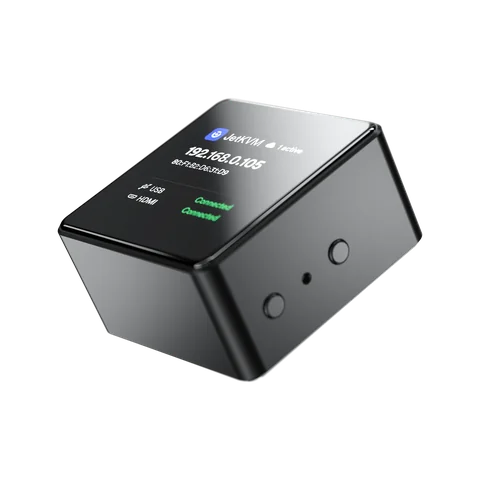

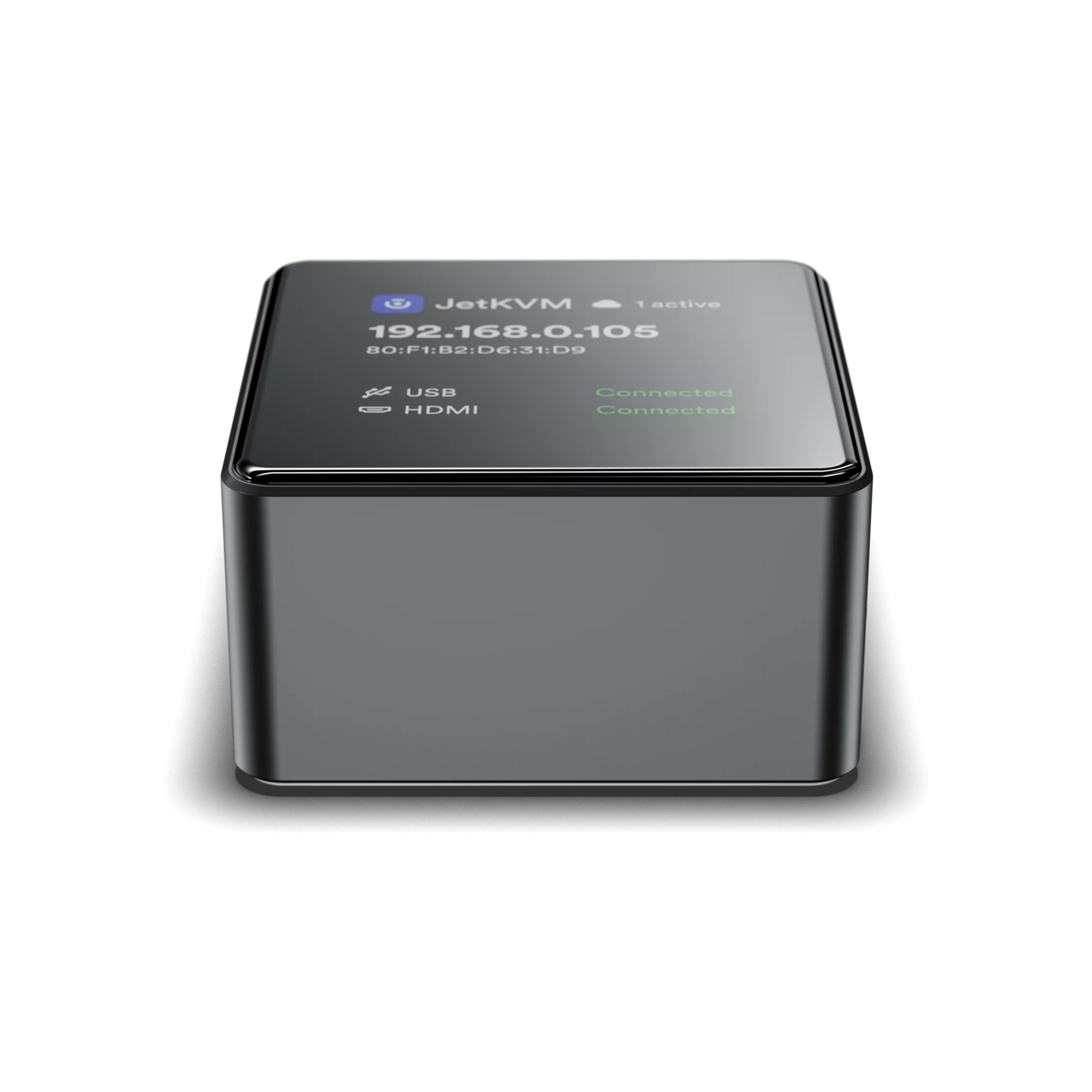

JetKVM Mini
A matchbox-sized KVM over IP, with Ethernet or wireless. New open-source firmware, the same JetKVM web interface and cloud. Read the announcement.
Available as
EthernetWired, over Ethernet
WirelessOver 2.4 and 5 GHz Wi-Fi
Buy from an authorized reseller
Ships to 40+ countriesPricing varies by region
Specifications
Computation
- MCU
- ESP32-P4X
- Cores
- Dual-core RISC-V, 400 MHz
- Memory
- 32 MB PSRAM
- Storage
- 16 MB flash, TF Card slot for virtual media (card not included)
- Video encoder
- Hardware H.264
Connections and Expansion

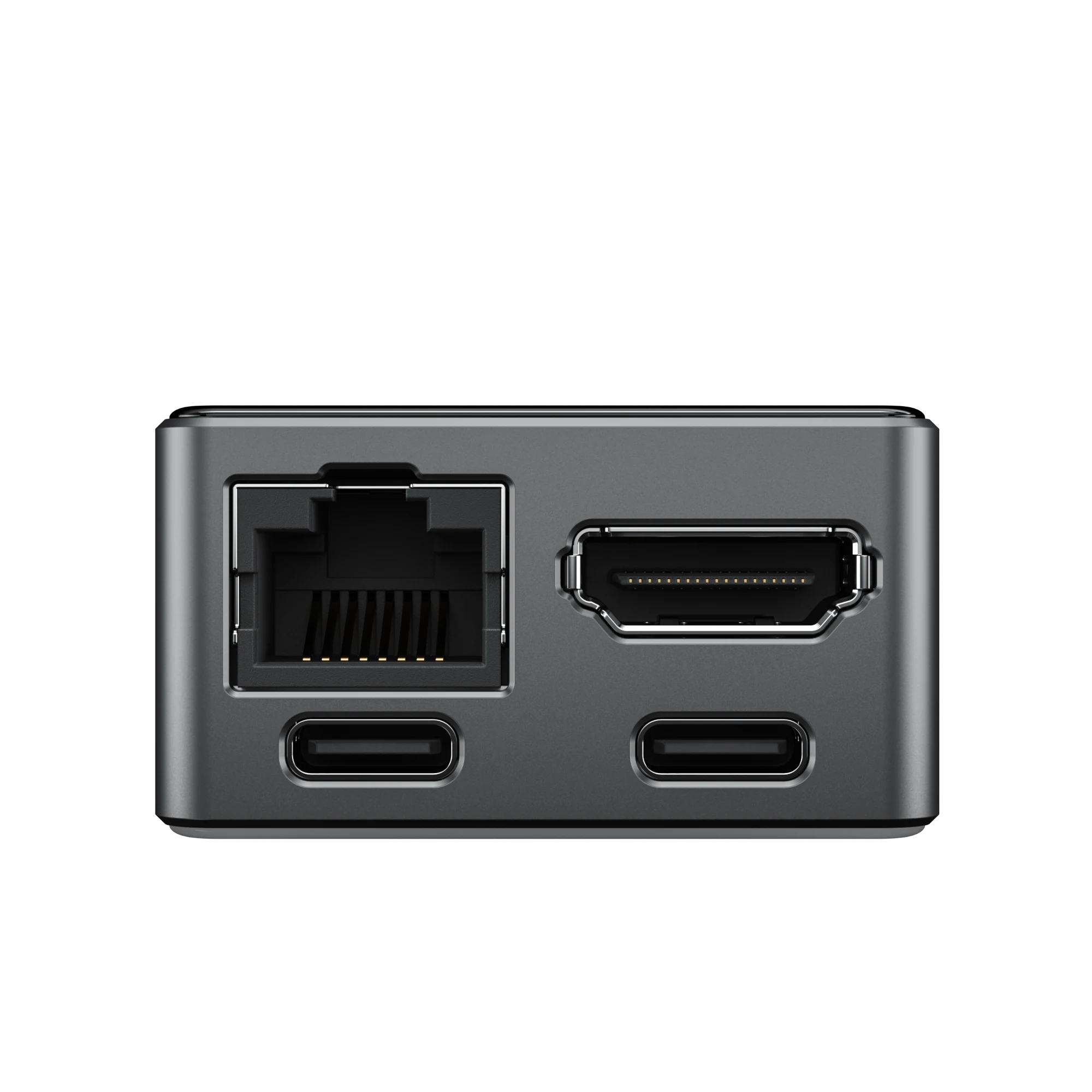

- Network, Ethernet
- RJ45, up to 100 Mbps
- Network, Wireless
- ESP32-C5, 802.11ax, 2.4 and 5 GHz, 20 MHz channels
- USB
- 1x USB 2.0 HS(480Mbps), 1x USB 2.0 FS(12Mbps)
- Video
- up to 1080p30/720p60
- Display

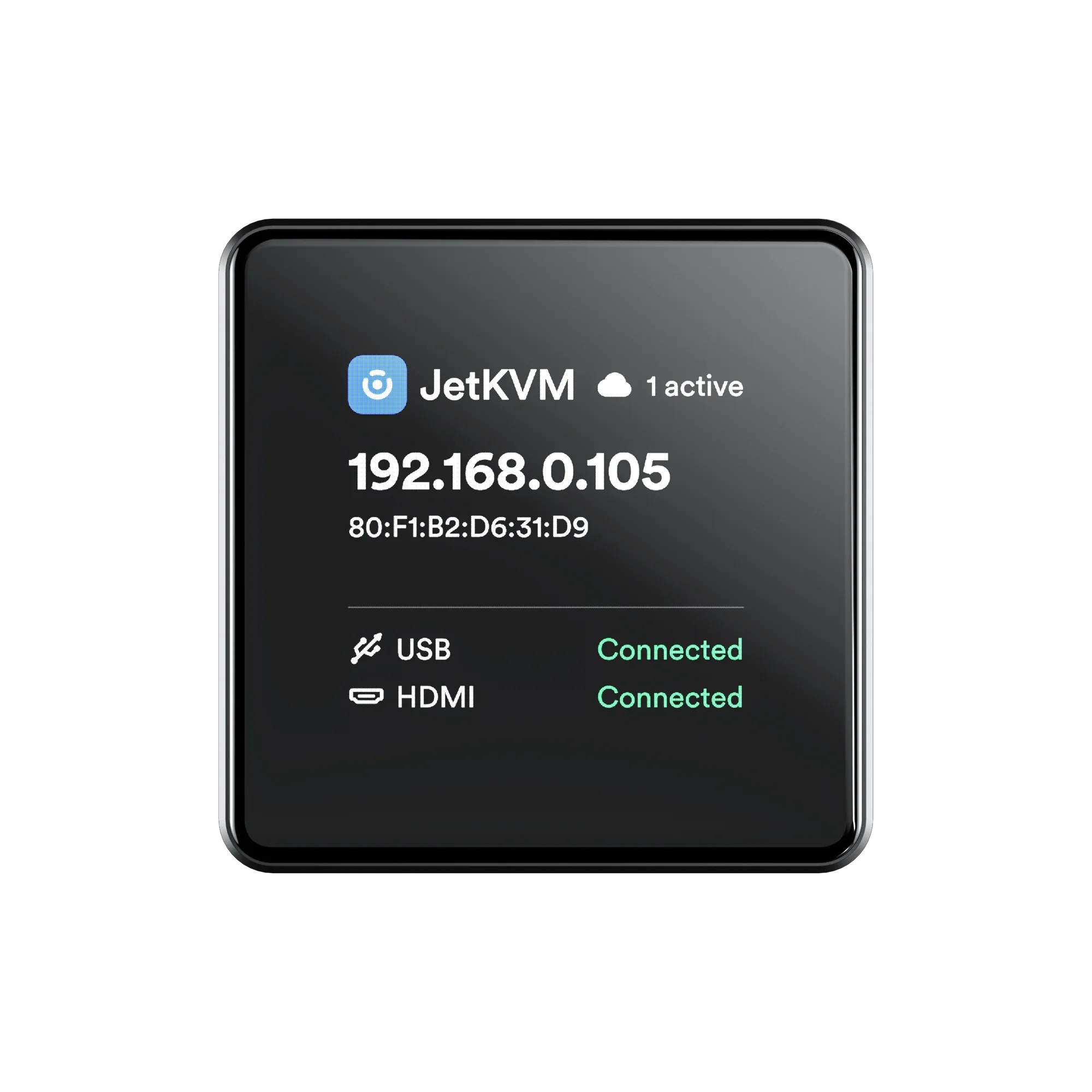

- 240x240 IPS display
Software Stack
- Firmware
- Open source, MIT
- Dashboard
- JetKVM web interface
- Remote access
- JetKVM Cloud
Physical and Electrical
- Size
- 42 × 42 × 23 mm (1.7 × 1.7 × 0.9 in)
- Power
- 5 V, 500 mA
- Operating temperature
- 10-35°C (50-95°F)
Reviews
The BEST IP KVM I've ever reviewed
apalrd's adventures
Not EVERYTHING Is Ridiculously Expensive
Hardware Haven
JetKVM Mini Review: A $39 KVM That Gets You Into the BIOS From Anywhere
DB Tech
JetKVM Mini is $39 (AND BRILLIANT!!!) - Here is Why...
NASCompares
This Tiny $39 Device Can Control Your PC From ANYWHERE! JetKVM Mini
DIGIBITE
Resources
In the box
JetKVM Mini
Main hardware unit, Ethernet or wireless model. Cables and TF Card are not included.
